Advanced HDD Guidance Technology – Para Track System

PARATRACK
HDD GUIDANCE SYSTEM

Infonux utilizes ParaTrack Guidance Technology, one of the most advanced underground tracking systems used in Horizontal Directional Drilling (HDD). The system enables highly accurate monitoring of the pilot bore path, ensuring safe and precise pipeline installation even in challenging underground environments.

ParaTrack technology utilizes multiple magnetic tracking sources, allowing the drilling team to track the drill head with exceptional accuracy, even when magnetic interference is present. This capability significantly improves drilling reliability for complex crossings such as highways, canals, marine channels, and congested urban utility corridors.

The system is widely recognized in the HDD industry for its high-precision tracking capabilities, providing vertical and lateral accuracy within 2% of borehole depth. It allows engineers to verify borehole positioning and maintain precise alignment throughout the drilling process.

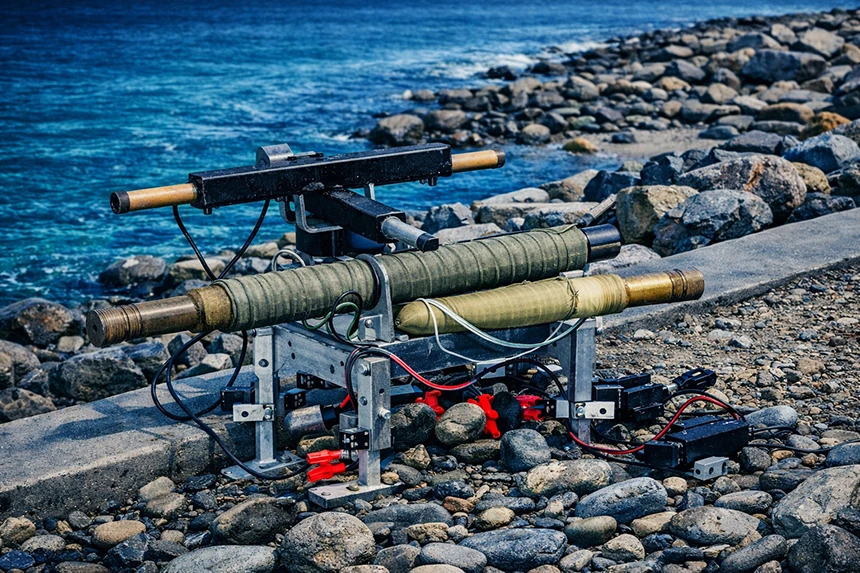

ParaTrack Multiple Magnetic Tracking Hardware Assembly on site location

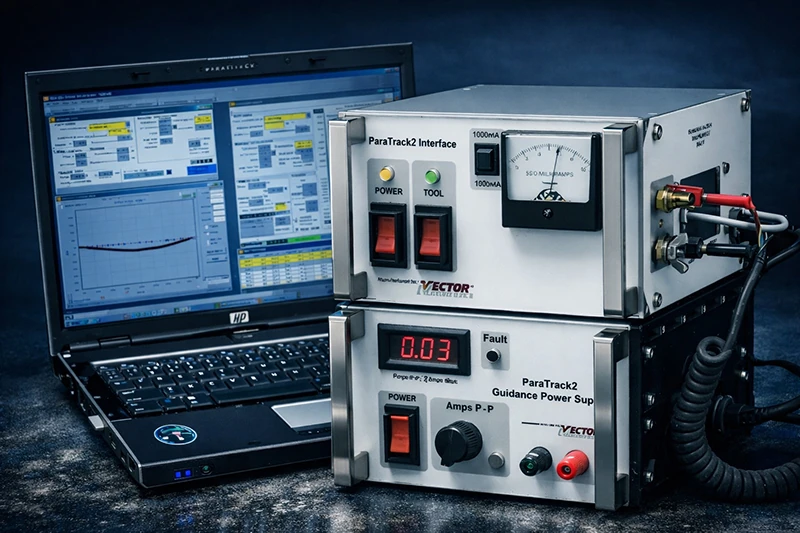

ParaTrack real-time tracking interface monitoring hardware arrays setup

Key Features

01HDD pipeline installation beneath roads
02High accuracy guidance technology
03Ability to operate in magnetic interference environments
04Suitable for long-distance HDD crossings
05Real-time drilling monitoring

Technical Highlights

  • Depth capability exceeding 1000 feet
  • Compatible with advanced steering tools and drilling systems
  • Reliable performance for infrastructure projects such as pipelines, utility crossings, and marine installations

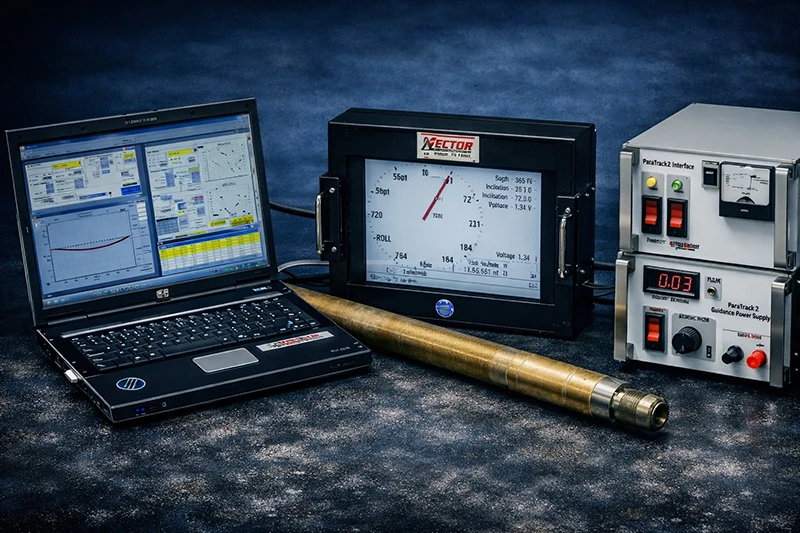

ParaTrack interface console box paired alongside field compute system terminals
